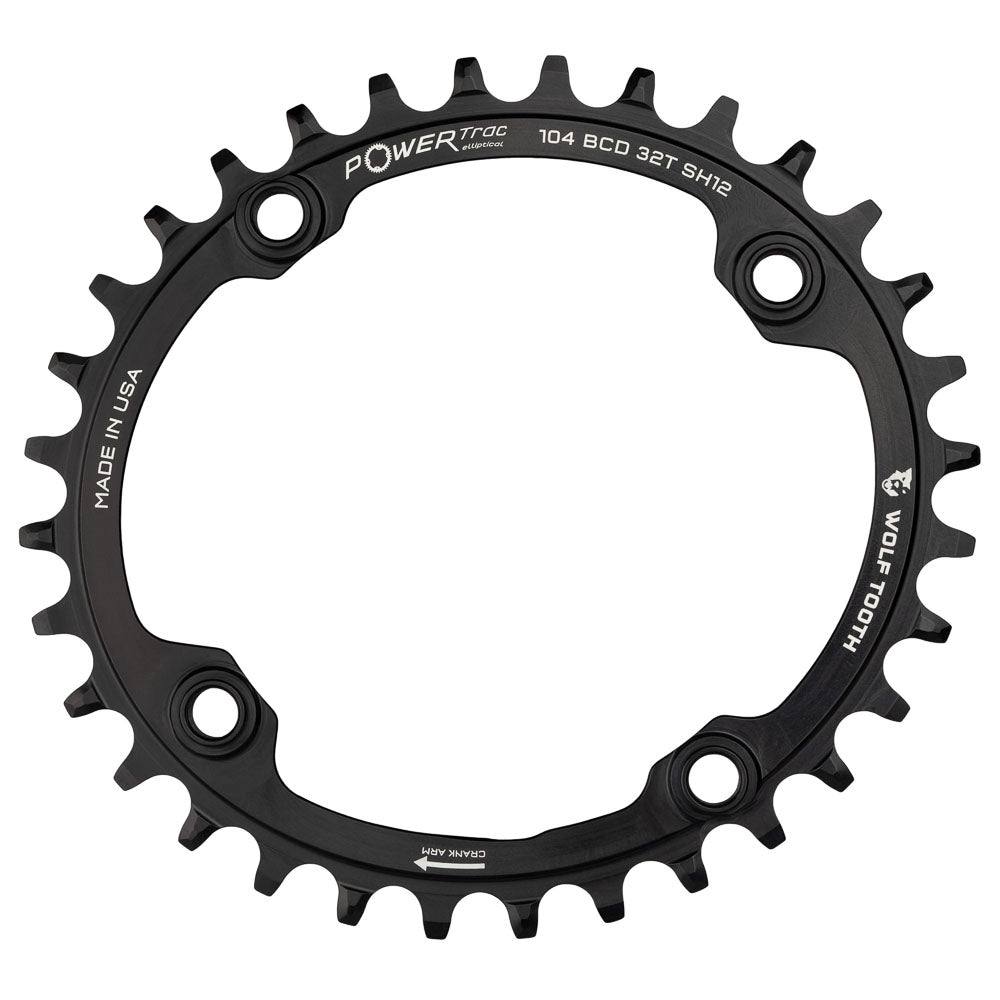

104 BCD DROP-STOP OVAL CHAINRING – SHIMANO HG Clearance Buy

104 BCD is the most common bolt pattern on double and triple cranksets and happens to be the first product ever made by Wolf Tooth Components. The Drop-Stop® tooth design is the best performing on the market, with exceptional durability.

• Drop-Stop technology: On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
• Alternating wide/narrow tooth pattern prevents chain derailment.

COMPATIBILITY

• Fits any 104 BCD crankset.
• Designed to meet the requirements for E-bike use.
• Chainring Bolts: All tooth sizes require 1x bolts that are 6mm long, with exception to 30T rings which are threaded and require bolts that are 7-10mm long.
• Chainring Bolt Requirements for Bashring: 104 x 30t – 10mm bolts are required for use with the bashring. Other 104 BCD sizes will need 8mm bolts – this is the stock size that comes on 3x cranksets holding the middle and big rings on. Wolf Tooth does not make these.
• 32t 104 BCD chainrings work on many older 2x Shimano cranksets (XT, SLX, or Deore).
• Drivetrains: 1×12 Shimano HG drivetrains only

POWERTRAC ELLIPTICAL

More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the power and traction benefits inherent to oval chainrings.

It’s like having two chainrings in one! With PowerTrac oval rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical power. For example, during this section a PTE 34t ring is equivalent to a 36t round ring. Similarly, in the “Recovery Zone” (11-1 and 5-7) the smaller section on the PTE ring engages, maximizing efficiency in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.

Additionally, the above provides a smoother, more efficient pedal rotation, which means better traction. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum.

DROP-STOP TECHNOLOGY

Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile delivers ultimate chain retention and mud shedding ability.

RECOMMENDATIONS

• We recommend the use of a clutch style rear derailleur for the best chain security.
• If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck.



SPECIFICATIONS

Weights: 32T • 41g | 34T • 48g | 36T • 55g
Material: 7075-T6 aluminum
Made in the USA

---

The Story

Wolf Tooth was founded to design and manufacture precision cycling products that emphasize function, performance, and reliability to meet the needs of our fellow racers and riders.

We are a group of cyclists in Minneapolis, Minnesota that spend a lot of time talking about bike components. Like most detail-obsessed riders, we’re always looking for new products that could make our bikes lighter, faster, more versatile, or more reliable. We pride ourselves on delivering premium products of the highest quality.

To use this chainring, first make sure your crankset has a 104 BCD bolt pattern. It’s designed to work well with 1×12 Shimano HG drivetrains. When installing, pay attention to the chainring bolt requirements based on the tooth size. For the best chain security, we recommend using a clutch style rear derailleur. If you’ll be riding in very muddy conditions, it’s a good idea to use a chainguide or chainkeeper along with a clutch-type rear derailleur to avoid chaindrops and chainsuck. To maintain, keep it clean by wiping off dirt and debris regularly. Check the chainring bolts for tightness from time to time.
